Index.
18-Jan-2012: Initial release.
Introduction.
For maintenance of our Home Server we need an internal web server. On this server we can install things for example like phpMyAdmin to have easy access to our MySQL server. We could also create a Intra-net server, but in a Home environment that is not so useful.
Installation.
Install all software that we need to run nginx on our Home Server:
[root@homsrv ~]# pacman -S nginx php-fpm php-gd php-mcrypt php-snmp fcgiwrap resolving dependencies... looking for inter-conflicts... Targets (10): fcgi-2.4.0-7 libmcrypt-2.5.8-3 php-5.3.9-1 spawn-fcgi-1.6.3-2 fcgiwrap-1.0.3-2 nginx-1.0.11-1 php-fpm-5.3.9-1 php-gd-5.3.9-1 php-mcrypt-5.3.9-1 php-snmp-5.3.9-1 Total Download Size: 4.97 MiB Total Installed Size: 23.61 MiB Proceed with installation? [Y/n] :: Retrieving packages from extra... php-5.3.9-1-i686 2.8 MiB 1058K/s 00:03 [######################] 100% php-fpm-5.3.9-1-i686 1590.6 KiB 1023K/s 00:02 [######################] 100% php-gd-5.3.9-1-i686 71.2 KiB 328K/s 00:00 [######################] 100% libmcrypt-2.5.8-3-i686 67.4 KiB 305K/s 00:00 [######################] 100% php-mcrypt-5.3.9-1-i686 10.3 KiB 100K/s 00:00 [######################] 100% php-snmp-5.3.9-1-i686 7.2 KiB 134K/s 00:00 [######################] 100% fcgi-2.4.0-7-i686 47.3 KiB 215K/s 00:00 [######################] 100% :: Retrieving packages from community... nginx-1.0.11-1-i686 362.5 KiB 725K/s 00:01 [######################] 100% spawn-fcgi-1.6.3-2-i686 8.4 KiB 150K/s 00:00 [######################] 100% fcgiwrap-1.0.3-2-i686 9.4 KiB 188K/s 00:00 [######################] 100% (10/10) checking package integrity [######################] 100% (10/10) loading package files [######################] 100% (10/10) checking for file conflicts [######################] 100% (10/10) checking available disk space [######################] 100% ( 1/10) installing nginx [######################] 100% Optional dependencies for nginx passenger ( 2/10) installing php [######################] 100% ( 3/10) installing php-fpm [######################] 100% ( 4/10) installing php-gd [######################] 100% ( 5/10) installing libmcrypt [######################] 100% ( 6/10) installing php-mcrypt [######################] 100% ( 7/10) installing php-snmp [######################] 100% ( 8/10) installing fcgi [######################] 100% ( 9/10) installing spawn-fcgi [######################] 100% (10/10) installing fcgiwrap [######################] 100% [root@homsrv ~]#
The PHP package needs some configuration, here is the diff output of /etc/php/php.ini:
--- php.ini.orig 2011-06-24 15:43:06.000000000 +0200 +++ php.ini 2011-06-24 15:51:23.000000000 +0200 @@ -376,7 +376,7 @@ ; or per-virtualhost web server configuration file. This directive is ; *NOT* affected by whether Safe Mode is turned On or Off. ; http://php.net/open-basedir -open_basedir = /srv/http/:/home/:/tmp/:/usr/share/pear/ +open_basedir = /srv/http/:/home/:/tmp/:/usr/share/pear/:/var/state/dhcp ; This directive allows you to disable certain functions for security reasons. ; It receives a comma-delimited list of function names. This directive is @@ -635,7 +635,7 @@ ; Example: ;error_log = php_errors.log ; Log errors to syslog (Event Log on NT, not valid in Windows 95). -;error_log = syslog +error_log = syslog ;;;;;;;;;;;;;;;;; ; Data Handling ; @@ -725,7 +725,7 @@ ; Maximum size of POST data that PHP will accept. ; http://php.net/post-max-size -post_max_size = 8M +post_max_size = 32M ; Magic quotes are a preprocessing feature of PHP where PHP will attempt to ; escape any character sequences in GET, POST, COOKIE and ENV data which might @@ -876,7 +876,7 @@ ; Maximum allowed size for uploaded files. ; http://php.net/upload-max-filesize -upload_max_filesize = 2M +upload_max_filesize = 32M ; Maximum number of files that can be uploaded via a single request max_file_uploads = 20 @@ -938,47 +938,47 @@ ; If you only provide the name of the extension, PHP will look for it in its ; default extension directory. ; -;extension=bcmath.so -;extension=bz2.so -;extension=calendar.so -extension=curl.so -;extension=dba.so +extension=bcmath.so +extension=bz2.so +extension=calendar.so +;extension=curl.so +extension=dba.so ;extension=enchant.so -;extension=exif.so -;extension=ftp.so -;extension=gd.so +extension=exif.so +extension=ftp.so +extension=gd.so extension=gettext.so ;extension=gmp.so -;extension=iconv.so -;extension=imap.so +extension=iconv.so +extension=imap.so ;extension=intl.so extension=json.so ;extension=ldap.so -;extension=mcrypt.so +extension=mcrypt.so ;extension=mssql.so -;extension=mysqli.so -;extension=mysql.so +extension=mysqli.so +extension=mysql.so ;extension=odbc.so -;extension=openssl.so -;extension=pdo_mysql.so +extension=openssl.so +extension=pdo_mysql.so ;extension=pdo_odbc.so ;extension=pdo_pgsql.so ;extension=pdo_sqlite.so ;extension=pgsql.so -;extension=phar.so -;extension=posix.so +extension=phar.so +extension=posix.so ;extension=pspell.so ;extension=shmop.so -;extension=snmp.so -;extension=soap.so -;extension=sockets.so +extension=snmp.so +extension=soap.so +extension=sockets.so ;extension=sqlite3.so -;extension=sqlite.so -;extension=sysvmsg.so -;extension=sysvsem.so -;extension=sysvshm.so +extension=sqlite.so +extension=sysvmsg.so +extension=sysvsem.so +extension=sysvshm.so ;extension=tidy.so -;extension=xmlrpc.so +extension=xmlrpc.so ;extension=xsl.so -;extension=zip.so +extension=zip.so ;;;;;;;;;;;;;;;;;;; ; Module Settings ; @@ -989,7 +989,7 @@ [Date] ; Defines the default timezone used by the date functions ; http://php.net/date.timezone -;date.timezone = +date.timezone = Europe/Amsterdam ; http://php.net/date.default-latitude ;date.default_latitude = 31.7667
The configuration file /etc/nginx/conf/nginx.xonf:
# /etc/nginx/conf/nginx.conf at homsrv.wpl.ym
worker_processes 1;
error_log logs/error_log;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
sendfile on;
keepalive_timeout 65;
gzip on;
gzip_min_length 1000;
gzip_proxied expired no-cache no-store private auth;
gzip_types text/plain text/css application/x-javascript
text/xml application/xml application/xml+rss
text/javascript;
gzip_disable "MSIE [1-6]\.";
# Upstream to abstract backend connection(s) for PHP.
upstream php {
server unix:/var/run/php-fpm/php-fpm.sock;
}
upstream cgi {
server 127.0.0.1:9001;
}
server {
listen 10.126.160.253:80;
listen [2001:1af8:fecf:7ea0::fd]:80;
listen 10.126.161.2:80;
listen [2001:1af8:fecf:7ea1::2]:80;
server_name homsrv.wpl.ym;
root /srv/http/htdocs;
access_log logs/access_log main;
error_log logs/error_log;
index index.html index.php;
location ~ \.php$ {
include fastcgi.conf;
fastcgi_pass php;
}
}
}
Now, for the first time start the server like this:
[root@homsrv ~]# mkdir -p /srv/http/htdocs [root@homsrv ~]# rc.d start php-fpm :: Checking configuration [DONE] :: Starting php-fpm [DONE] [root@homsrv ~]# rc.d start fcgiwrap :: Starting fcgiwrap daemon [DONE] [root@homsrv ~]# rc.d start nginx :: Checking configuration [DONE] :: Starting Nginx [DONE] [root@homsrv ~]#
If it all works, add php-fpm, fcgiwrap and nginx to /etc/rc.conf.

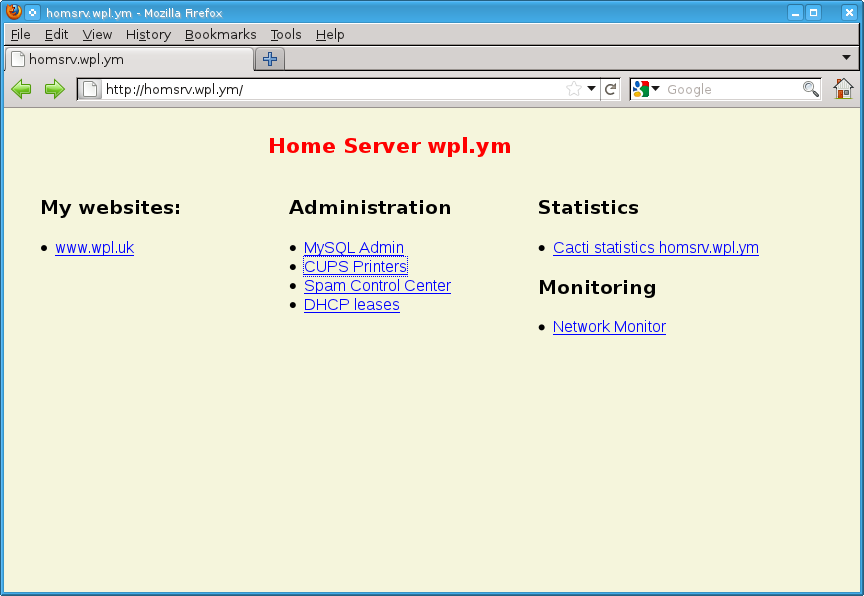

That’s it. In the support archive is a sample home page with some links to existing and feature utilities.
Home Server maintenance web
Download.
The complete configuration is in the next archive:
